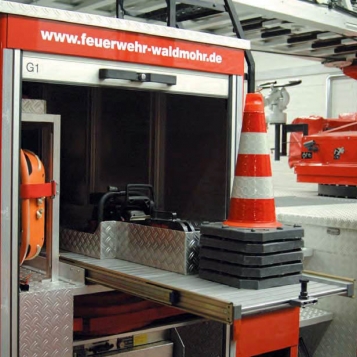

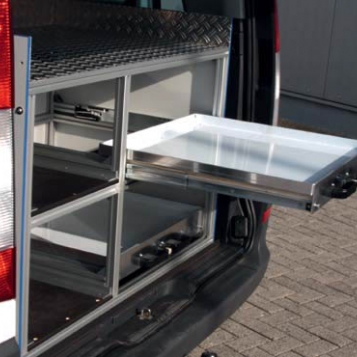

Vehicles / Telescopic equipment racks

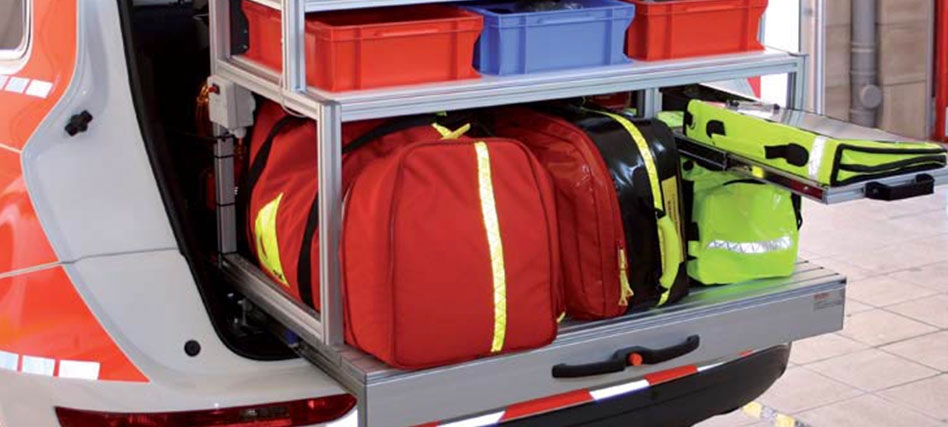

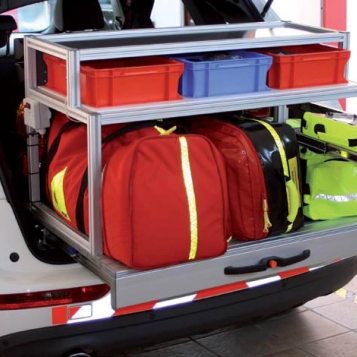

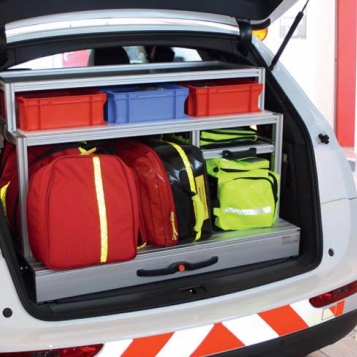

Manufactured from the proven MiniTec profile system, with the clever connection technology without machining. This technology offers maximum flexibility.

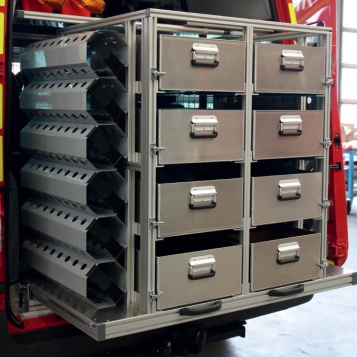

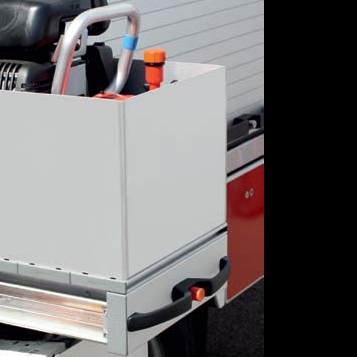

Superstructures and brackets can also be retrofitted without great expenditure of time. All versions can be optimally adapted to the existing installation width. The heavy-duty pull-out is available either completely assembled or as a kit for self-assembly.

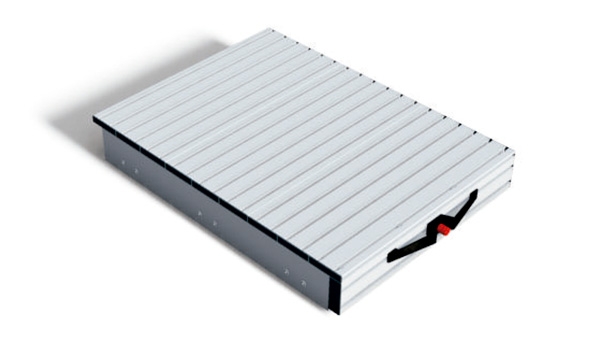

. Pull-out platform made of MiniTec aluminium profiles 270x19
. Total height 128mm
. Load capacity: max. 150kg surface load
. Installation width freely selectable from 400mm to 1200mm
. Surface with grooves for individual mounting of brackets
. Locked on both sides, in extended and retracted position

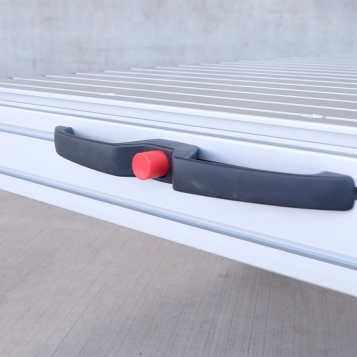

. Can be unlocked via push-button in practical double handle

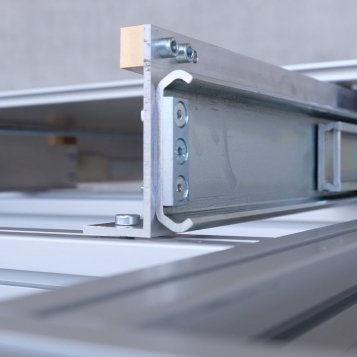

. Ball-bearing telescopic slide made of galvanised steel


More Info

Photos

Videos

Downloads

Links

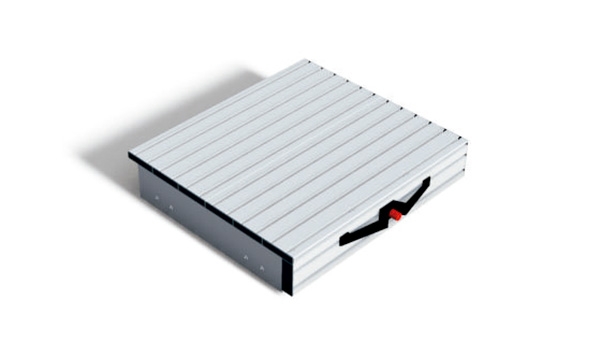

Telescopic equipment rack 540

Telescopic equipment rack 540

V540 assembled Art-Nr. 290840/0S
V540 kit Art-Nr. 290840/1S

Technical specifications:
Depth of the pull-out platform 540 mm
Total length: 575 mm incl. handle
Pull-out platform 450 mm

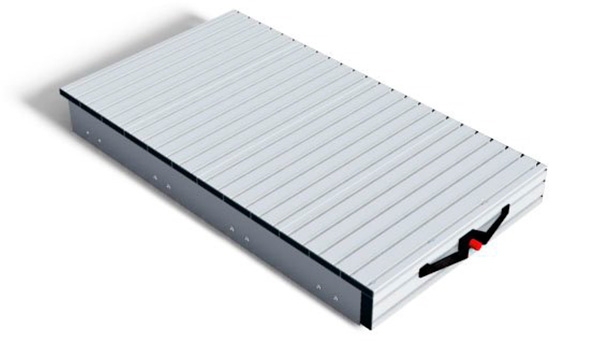

Telescopic equipment rack 810

Telescopic equipment rack 810

V810 assembled Art-Nr. 290841/0S
V810 kit Art-Nr. 290841/1S

Technical specifications:
Depth of the pull-out platform 810 mm
Total length: 845 mm incl. handle
Pull-out platform 700 mm

Telescopic equipment rack 1080

Telescopic equipment rack 1080

V1080 assembled Art-Nr. 290842/0S
V1080 kit Art-Nr. 290842/1S

Technical specifications:
Depth of the pull-out platform 1080 mm
Total length: 1115 mm incl. handle
Pull-out platform 700 mm

Montagem de dispositivo de armazenamento [MINITEC]
