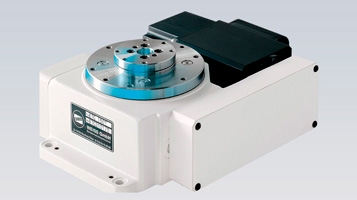

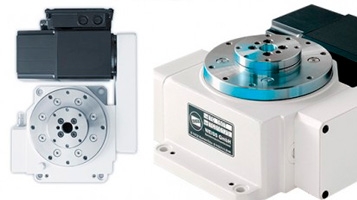

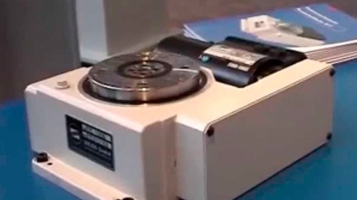

TC 220 rotary indexing tables.

One of the most reliable and robust rotary indexing tables available worldwide. Your most popular partner in the field of automation technology. Extremely long service life combined with impressively fast switching. Now in its third generation. Robust rotary indexing table with smooth, jerk and impact-free running and extremely long service life. When using a WEISS rotary table control system, we extend the warranty from one to four years.

GENERAL INFORMATION
. Maximum recommended equipment diameter Dtp: approximately 1100 mm
. Custom option for TC0220T: screw-on mounting from above (please request drawing)

TECHNICAL DATA
. Voltage (custom voltages available on request): 230 / 400 V
. Frequency: 50 Hz
. Indexing precision *:
Indexing 2-12: 40 arcsec (± 20”)
Indexing 16-24: 60 arcsec (± 30”)
Indexing 30-36: 80 arcsec (± 40”)
. Axial run-out of the drive flange: (at Ø 220 mm) 0.01 mm
. Concentricity of the output flange: 0.01 mm
. Parallelism between the output flange and screw-on surface of the housing: (at Ø 220 mm) 0.03 mm
. Total weight, including motor: 44 kg
. Min. inside diameter of the rotary plate: 96 mm
* Positioning accuracy can be improved by 10 arcsec on request.

LOAD DATA (for the stationary central part)
. Permitted torque: 145 Nm
. Permitted tilting moment: 300 Nm
. Permitted axial force: 5000 N
. Permitted radial force: 4000 N
Combined loads and permitted process forces only after inspection by WEISS.

LOAD DATA (for the output flange)
. Static torque: 200 Nm
. Permitted dynamic tilting moment: 700 Nm
. Permitted dynamic axial force: 7500 N
. Permitted dynamic radial force: 8000 N
