Flexibility and strength in automation systems with the HDRT range.

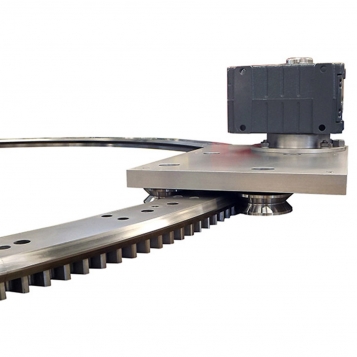

HDRT offers all the inherent benefits of Hepco’s ring and track systems with the capability to carry much higher loads. Utilising proven components, HDRT track systems are used extensively as transfer systems for machine tool and automation applications. In general automation, basic gear driven rings up to 1656mm diameter are a popular solution. With little to no maintenance required ring systems are considered in many cases as a cost-effective alternative to traditional slewing rings.

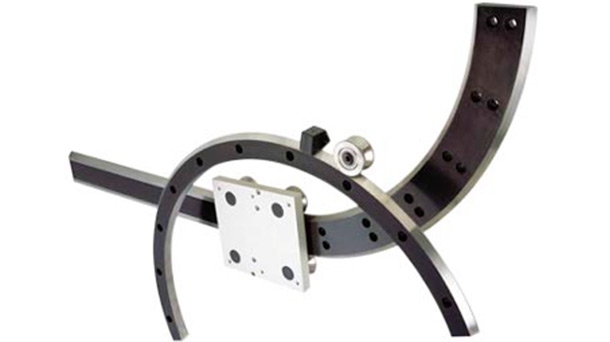

The HepcoMotion HDRT combines the flexibility and function of our popular PRT2 ring track system with the size and strength of our HDS2 heavy duty slide system.

Internal and external V rings are available to Ø1800mm for rotary applications, and track systems can be constructed to follow any path made up of curves and straights.

More Info

Photos

Downloads

Links

Mais Info

HDRT Benefits

. 150mm diameter V Groove bearings can be used for extended system life in high load capacity applications.
. Track systems use proven heavy-duty double edge slides with built in parallelism, saving on setting time.

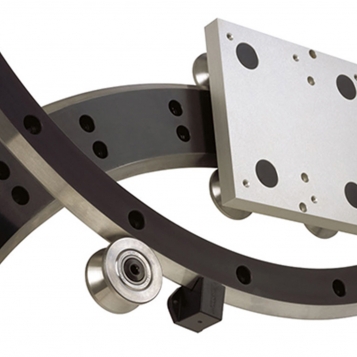

. Large carriage platform for easy and secure load location.
. Built in lubrication using bearing lubricators.

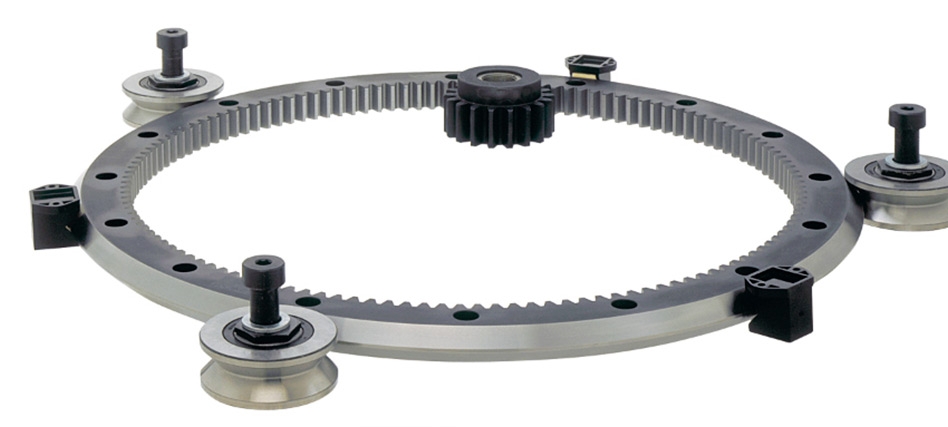

. Gears machined directly into ring with matching pinions up to Mod 8 size for a high drive capacity.
. All options available in stainless steel.
. High load capacity: track carriages and rings can support loads to 40kN.
. Broad range of sizes: rings and segments from Ø512 to 1656mm are standard.
. Any size up to Ø1800 can be made to order.
. Tolerant of debris: due to Hepco’s acclaimed V slide technology.
. Fully adjustable: using eccentric bearing adjustment system.
. Easy installation: Hepco’s new style of bearing mounting makes installation simple, accurate and free from play.
. Simple lubrication: Can be applied by new ring and bearing type lubricators.
. Low maintenance: lubricators maximise life, with no re-lubrication required in many cases.
