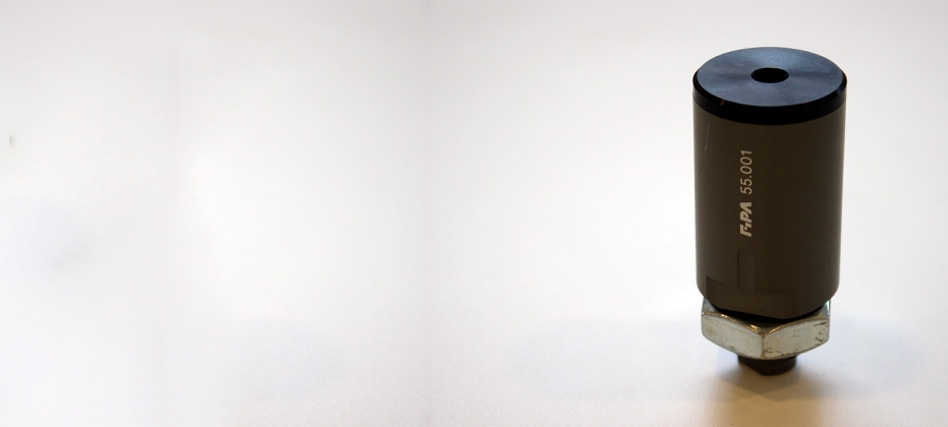

Highly dynamic handle with FIPA lift cylinders.

Also called lifting vacuum cups or integral lifting vacuum cups, FIPA offers various models of lifting cylinders operated with compressed air or vacuum. Thanks to extremely short cycle times, which are independent of lift and weight in some models, FIPA lifting cylinders are suited for use in highly dynamic automation and handling systems – particularly for stacking and destacking applications and pick & place.

FIPA lifting cylinders – operated with compressed air – are equipped with integrated ejectors for vacuum generation. They are optimised for stacking and destacking products of all kinds.

FIPA lifting cylinders – vacuum-operated – also called vacuum lifting cylinders, are preferred for stacking and destacking thin and fragile products such as veneers, cards and signs as well as for Pick & Place applications.


More Info

Videos

Downloads

Links

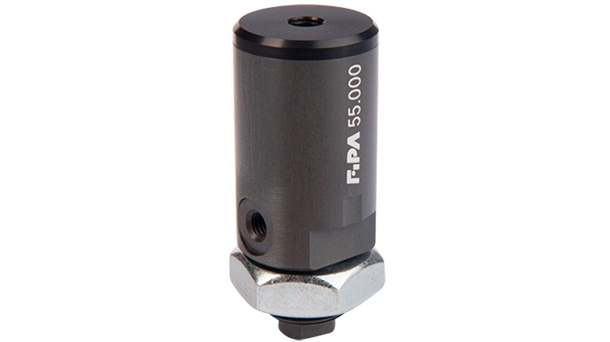

Lifting cylinders – vacuum-operated

Lifting cylinders – vacuum-operated

. Picking-up and stacking flat and sensitive objects such as e.g. signs, cards, paper, veneers
. Suitable for short cycle times
. Robust aluminum housing, Hartcoat® treated
. Non-rotating piston rod
. Low-noise version
. 55.002: stacking and lifting of metal sheet and heavy parts
. Not suitable for workpieces permeable to air
. Customized sizes on request

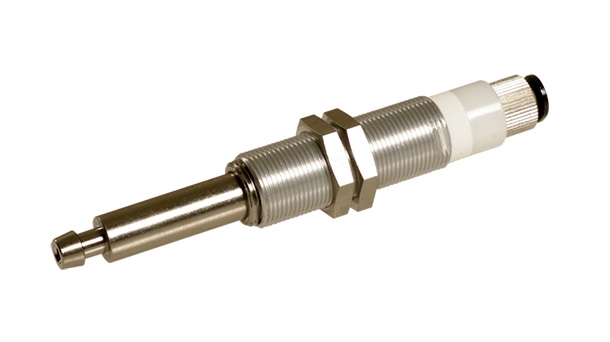

Vacuum lifting cylinders, for flat suction picking – operated by compressed air

Vacuum lifting cylinders, for flat suction picking – operated by compressed air

. Stacking and destacking of workpieces
. Vacuum generation by compressed air using an integrated ejector
. Lifting cylinder extended during idle state
. Cycle time independent of stroke and weight

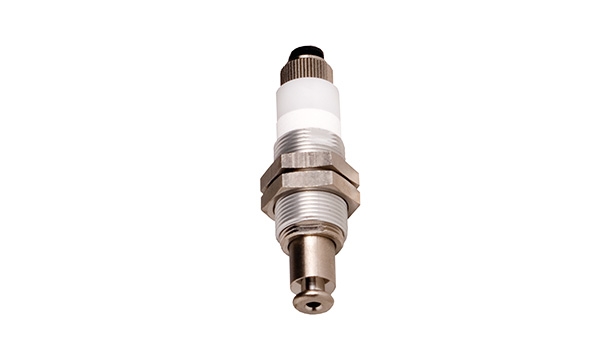

Vacuum lifting cylinders, for high suction picking – operated by compressed air

Vacuum lifting cylinders, for high suction picking – operated by compressed air

. Stacking and destacking of workpieces
. Vacuum generation by compressed air using an integrated ejector
. Lifting cylinder extended during idle state
. Cycle time independent of stroke and weight

Vacuum lifting cylinder, secured against rotation blow-off function, operated with compressed air

Vacuum lifting cylinder, secured against rotation blow-off function, operated with compressed air

. Picking-up and stacking of flat and sensitive objects such as signs, card, labels, veneer in the correct position using non-rotating piston rod
. Integrated vacuum generation
. Very short cycle times due to integrated compressed air pulse during placement
. Very compact design in robust aluminum housing
. Long service life of around 25 million cycles thanks to Hartcoat® treated running surfaces
. Optional monitoring of piston position

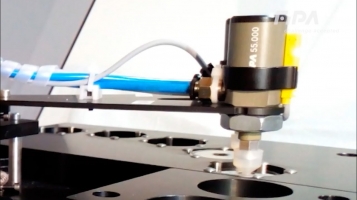

Cilindros de elevação e ventosas para sistema de teste de discos codificados [FIPA]
