Needle grippers.

. Grippers for materials that are non-dimensionally stable or difficult to handle with vacuum
. Central bore hole (Ø 11.5 mm) to allow insertion of gripper into stack rails for pick & place
. Needles centrally crossed for firm grip
. Double-acting enables short duty cycles: compressed air connections for extraction/retraction of needles
. Needles can be individually replaced
. Easy adjustment of needle depth, markings at 1, 2, 3 and 4 mm

. Strokes adjustable to material thickness
. Grippers for materials that are non-dimensionally stable or difficult to handle with vacuum
. Central bore hole (Ø 10 mm) to allow insertion of gripper into stack rails for pick & place
. Stroke limitation adjustable to material thickness
. Needles centrally crossed for firm grip
. Double-acting enables short duty cycles: separate compressed air connections for extraction/retraction of needles
. Needles can be individually replaced
. Spare needle sets, each containing ten pieces available

. Gripper for materials that are non-dimensionally stable or difficult to handle with vacuum
. Stroke limitation by spacer plates
. Needles centrally crossed for firm grip
. Double-acting enables short duty cycles: separate compressed air connections for extraction/retraction of needles
. Needles can be individually replaced

. Gripper for materials that are non-dimensionally stable or difficult to handle with vacuum
. Alignment to material thickness via adjustable stroke
. Double-acting, enables short duty cycles, separate compressed air connections for extraction/retraction of needles
. Internal stroke guiding for extra slim design
. Sensor for monitoring gripper action via piston position (needles extracted/retracted)
. Stroke corresponds to maximum entry depth of needles
. Sensors and spare needle sets with ten needles each, available as accessories
. PNP and NPN sensors:
- C-nut (cable: 90°): GR04.202P, GR04.202N
- C-nut (cable: straight, short design): GR04.280P, GR04.280N

. Small needle diameter for low entry depth, blow-off function for fast product release
. Grippers with flat entry angle enables handling of thin or flat parts
. Knurled screw for stroke adjustment to textile thickness
. GR04.700: double-acting enables short duty cycles: separate compressed air connections for extraction/retraction of needles
- Additional compressed air inlet (A) for fast product release
. GR04.730: single-acting, compressed air connection for needle extraction, reset via return spring
. Stroke corresponds to maximum entry depth of needles
. Spare needle plates available as accessories

. Strokes adjustable to material thickness
. Grippers for materials that are non-dimensionally stable or difficult to handle with vacuum
. Central bore hole (Ø 10 mm) to allow insertion of gripper into stack rails for pick & place
. Stroke limitation adjustable to material thickness
. Needles centrally crossed for firm grip
. Double-acting enables short duty cycles: separate compressed air connections for extraction/retraction of needles
. Needles can be individually replaced
. Spare needle sets, each containing ten pieces available

RETRACTION OF NEEDLES CAN BE CONTROLLED SEPARATELY FOR BOTH SIDES
. Grippers for workpieces or materials that are non-dimensionally stable or difficult to handle with vacuum
. Narrow design
. Stroke can be adjusted to material thickness
. Double-acting enables short duty cycles: separate compressed air connections for extraction/retraction of needles on the face-side, alternatively one connection/each for separate extraction, one connection for central retraction
. Needles can be individually replaced
. Spare needle sets, each containing ten pieces available

ESPECIALLY SUITED FOR HANDLING HEAVIER WORKPIECES
. Grippers for materials that are non-dimensionally stable or difficult to handle with vacuum
. Stroke can be adjusted to material thickness
. Double-acting enables short duty cycles: separate compressed air connections for extraction/retraction of needles
. Spare needle plates, available

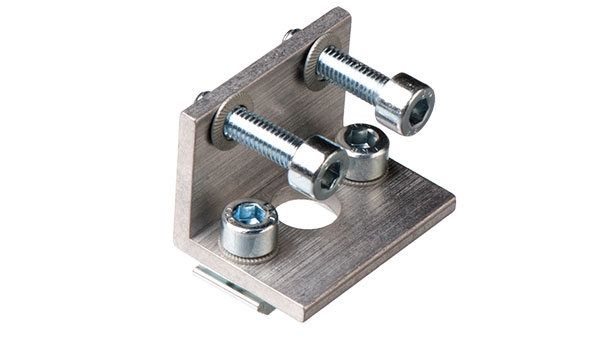

. Mounts needle grippers on the SLine and MLine extrusion systems or spring loaded suction fingers
. Two bore holes for DIN 912-M5, for mounting on extrusion
. Slot nuts and screws included in scope of delivery

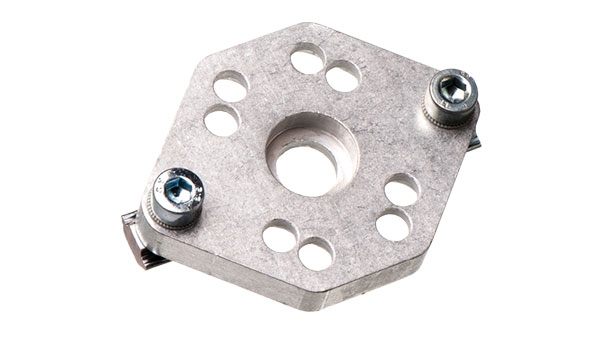

. Mounted needle gripper on the SLine and MLine extrusion systems or on spring loaded suction finger
. Two bore holes for DIN 912-M5, for mounting on extrusion with slot nuts
. Slot nuts and screws included in scope of delivery
