Automatic screwdrivers for screws SEL.

Marca

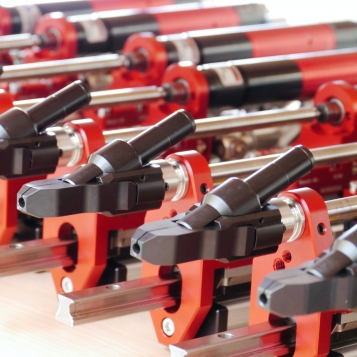

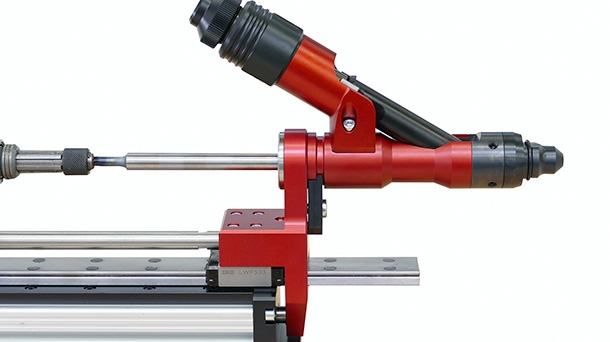

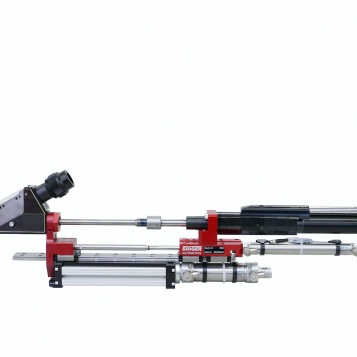

Automatic screwdrivers for screws SEL

Robust and powerful: for the automated assembly in series production in a harsh environment, Screwing the SEL series are ideally suited. Depending on requirements, the SEL system tools can be supplied with electric or pneumatic actuator. Easy to use and come with automatic feeding of screws SEL Screwing of Stoeger in every industry.

Friendly service and control functions
Simple suppression for malfunction of screw units , a bit change in less than 30 seconds and the automatic ejection when Fehlverschraubung screws show the serviceability of the series. The sensors on the SEL system wrench works reliably and ensures the monitoring of the basic position of the tightening, the torque, the screw and screwing a documentable quality.

For automatic assembly
- Series production
- Recordable quality

Applications
- Manual work stations
- Transfer lines
- Rotary table machines
- Suitable for short screw driving times

Advantages
- Individual and customized solutions realized quickly and easily
- Nose piece set up for your application
- Simple sensor adjustment
- Rotatable screw head
- Various mounting positions

Easy servicing
- Simple correction of faulty function
- Tool change < 30 seconds
- Automatic screw rejection when screw operation faulty

Technical details
- Automatic screw feeding
- Operates with two slides - delivery stroke unit and tool-bit/motor
- Two stroke sizes
- Electric or pneumatic drives
- Short and compact construction
- Identical basis modules for different screw sizes and torque range


More Info

Photos

Videos

Downloads

Links
SEL

SEL

Screw head Ø max.
SEL 21 - 5-17 mm *
SEL 100 - 8-20 mm *

Screw size
SEL 21 - M2-M8 *
SEL 100 - M5-M12 *

Torque (Nm)
SEL 21 - 0.2 - 20 Nm
SEL 100 - 5 - 100 Nm

Rotational speed (depending on drive)
SEL 21 - 50 - 2,500 rpm
SEL 100 - 50 - 2,500 rpm

Feed stroke
SEL 21 - Adjustable 0 - 80 mm
SEL 100 - 80 mm

Vacuum module
SEL 21 - N / A
SEL 100 - N / A

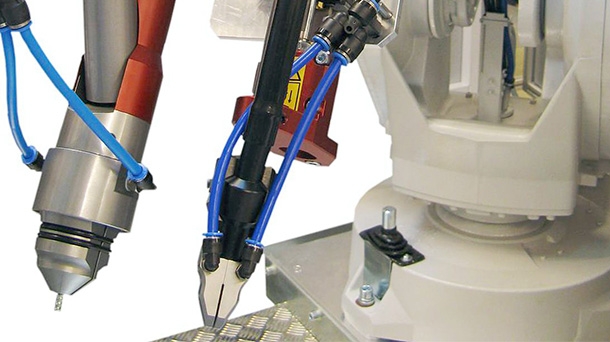

Suitable for robot adaptation
SEL 21 - yes
SEL 100 - yes

Contact pressure
SEL 21 - 40-180 N
SEL 100 - 100 - 250 N

* Standard; other values possible

SRL

SRL

Screw head Ø max.
SRL 21 - 5 - 17 mm *
SRL 100 - 8 - 20 mm *

Screw size
SRL 21 - M2 - M8 *
SRL 100 - M5 - M12 *

Torque (Nm)
SRL 21 - 0.2 - 20 Nm
SRL 100 - 5 - 100 Nm

Rotational speed (depending on drive)
SRL 21 - 50 - 2,500 rpm
SRL 100 - 50 - 2500 rpm

Feed stroke
SRL 21 - N / A
SRL 100 - N / A

Vacuum module
SRL 21 - N / A
SRL 100 - N / A

Suitable for robot adaptation
SRL 21 - yes
SRL 100 - yes

Contact pressure
SRL 21 - 40-180 N
SRL 100 - 100 - 250 N

* Standard; other possible subscription types

SRV

SRV

Screw head Ø max.
SRV 21  -5-17 mm *
SRV 100 - 8-20 mm *

Screw size
SRV 21  -M2-M8 *
SRV 100 - M5-M12 *

Torque (Nm)
SRV 21 - 0.2 - 20 Nm
SRV 100 - 5 - 100 Nm

Rotational speed (depending on drive)
SRV 21 - 50 - 2,500 rpm
SRV 100 - 50 - 2,500 rpm

Feed stroke
SRV 21 - Overstroke up to approx. 120 mm
SRV 100 - Overstroke up to approx. 120 mm

Vacuum module
SRV 21 - yes
SRV 100 - yes

Suitable for robot adaptation
SRV 21 - yes
SRV 100 - yes

Contact pressure
SRV 21 - 40-180 N
SRV 100 - 100-250 N

* Pattern; other possible values
