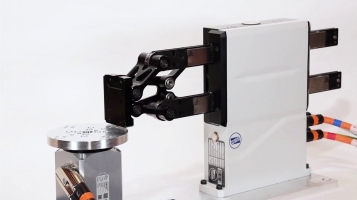

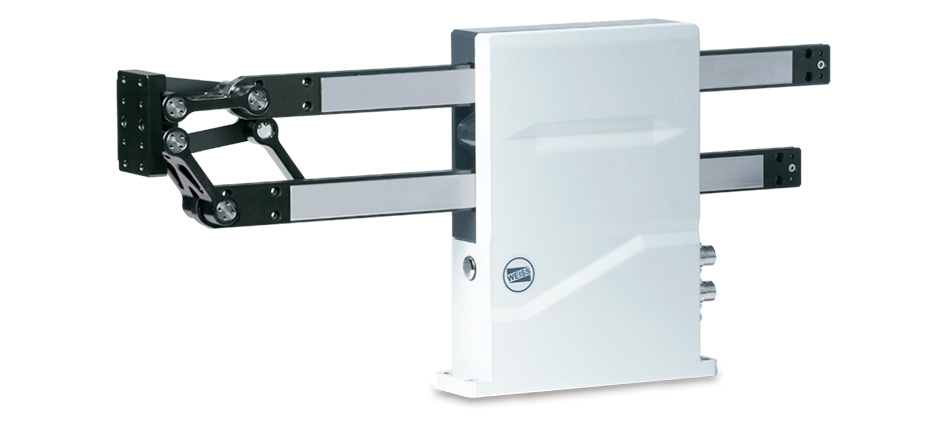

HP 70 Handling Systems.

Whether HP 140 or HP 70: The Pick & Place from WEISS works with two linear axes and therefore profit from all advantages of a direct drive: rapid dynamic performance, free user-programmability, minimal wear and highest precision. The HP overcomes limits of traditional pneumatic systems regarding variability, dynamic performance and efficiency.

GENERAL INFORMATION

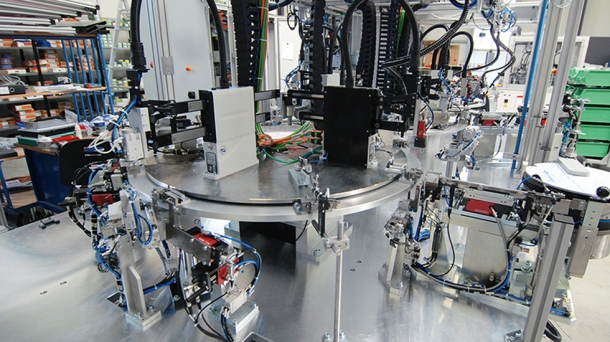

. The HP 70 can be used in any installation situation and therefore offers a maximum degree of flexibility
. Drawings of the HP 70 for custom installation locations are available on request

OPTIONS
. The Pick&Place unit can optionally be supplied with a clamping element for the y-axis and z-axis

TECHNICAL DATA
. Voltage range: 200-480 V
. Max. acceleration: 40 m/s2
. Max. speed: 3.6 m/s
. Nominal force: 65 N
. Peak force: 180 N
. Horizontal stroke: 127, 224, 320 mm
. Max Vertical stroke: 70 mm
. Weight: 9 kg
. Repeat accuracy: 0.005 mm
. Max. recommended load: 1 kg

LOAD DATA
. Max. static moment about the X-axis: 61 Nm
. Max. static moment about the Y-axis: 41 Nm
. Max. static moment about the Z-axis: 120 Nm

ENCODER
. Balluff sin/cos
. Balluff BISS
. Balluff SSI
